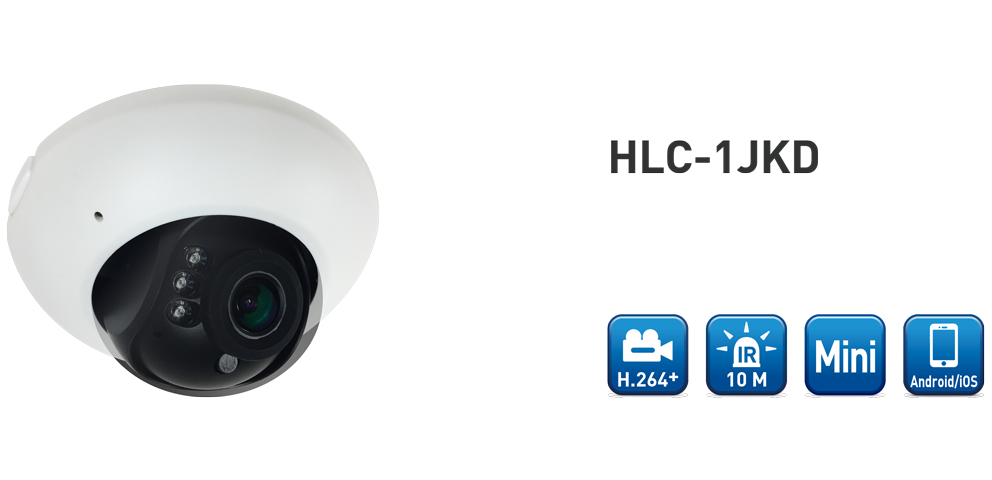

HLC-1JKD
Mini Indoor Dome IP Camera
Features
|
Specifications
| Product Name | H.264+ 2MP Mini IR Indoor Dome |
| Model | HLC-1JKD |
| Max. Resolution | 1920x1080 (2MP) |
| Sensor | 1/3" CMOS Sensor |
| Lens | 2.8mm@F2.2, 3.6mm@F2.2 |
| Sensitivity | Color: 0.05 Lux (AGC ON), B/W: 0.01 Lux (AGC ON) |
| FOV | 2.8mm Horizontal: 86°, Vertical: 47° 3.6mm Horizontal: 74°, Vertical: 42° |
| Tilt | 65° |
| IR Distance | 6 x LEDs, 850nm, IR Distance 10 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps |
| Max. Streams | 3 Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Mic Built-in, Output: External Line out (Option) |
| Interface | Micro SD Card Slot, RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, QoS/DSCP, COS, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile G, ONVIF Profile T |
| Power Consumption | DC 12V Max.: 3.5 W, PoE Max.: 4.5 W |
| Special Features | Brightness, Contrast, Hue, Sharpness, Digital Wide Dynamic Range, Dynamic Noise Reduction, Shutter Time, Sense up, AE Compensation, Saturation, AGC, Back Light Control, Mirror, Flip, Day & Night Adjustable, White Balance, Red Gain, Blue Gain, Region of Interest, Smart streams, Motion Detection, Privacy Mask, Push Video, Tampering Detection, Corridor mode, P2P (Optional) |
| Dimensions | Ø100 x H49 (mm) |
| Weight | 180 (g) |
| Working Temp. | -20°C ~ 50°C / -4°F ~ 122°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20240524 | 5.7 Mb |  |
||
| Datesheet | 20240520 | 1.1 Mb | |
||
| IP Scanner | 20180726 | 1.7 Mb | |
Dimensions
 |
