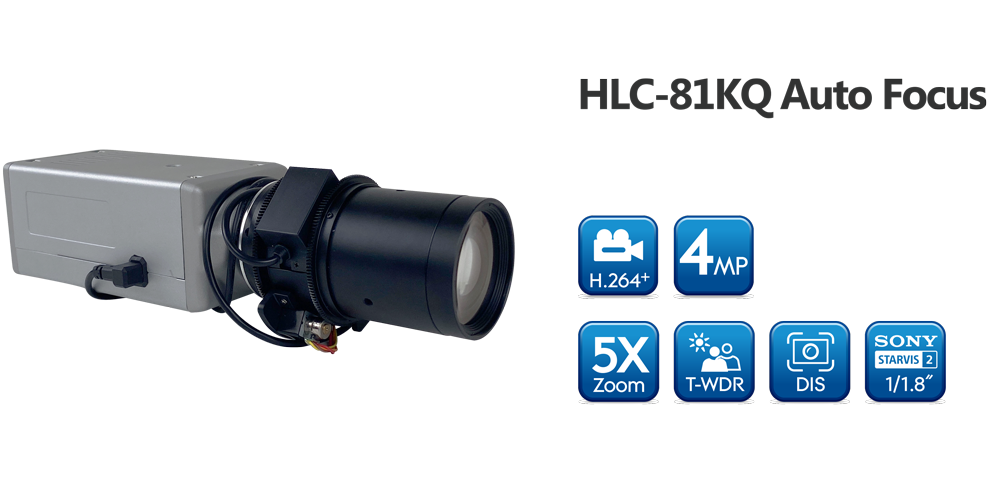

HLC-81KQ Auto Focus
Features
|
Specification
| Product Name | H.264+ 4MP Auto Focus Box IP Camera |
| Model | HLC-81KQ Auto Focus |
| Max. Resolution | 2688x1520 (4MP) |
| Sensor | 1/1.8" Sony CMOS Sensor |
| Lens | 10-50mm (5X) CS Mount Auto Focus |
| Sensitivity | Color: 0.001 Lux (AGC ON), B/W: 0.0005 Lux (AGC ON) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 2688x1520@30fps, 2048x1536@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 640x360@30fps |
| Max. Streams | Quadruple Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Microphone Built-in & Ø3.5mm Stereo Jack (Auto Switch), Output: Ø3.5mm Stereo Jack, Support 2 way |
| Interface | DIx2, DOx2, Micro SD Card Slot (Optional), Wireless (Optional), RS-485, RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Power Consumption | DC 12V Max.: 5.8W, PoE Max.: 6.5W |
| Special Features | Region of Interest, Advanced Smart Stream, Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, P-IRIS, BLC, LDC, Push Video, P2P (Optional) |
| Dimensions | Ø72.2 x L239.6(mm) |
| Weight | 825 (g) |
| Working Temp. | -20°C ~ 60°C / -4°F ~ 140°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20250516 | 4.9 Mb |  |
||
| Datesheet | 20250421 | 1.6 Mb | |
||
| IPScanner | 20180726 | 1.7 Mb | |
Dimensions
 |
