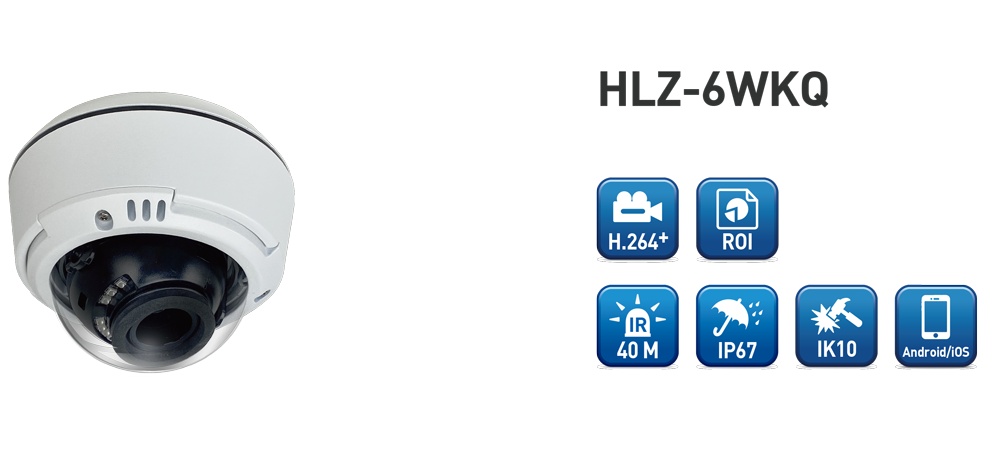

HLZ-6WKQ
5MP H.264+ Vandal Dome IP Camera
Features
|
Specification
| Product Name | H.264+ 5MP Motorized IR Vandal Dome |
| Model | HLZ-6WKQ |
| Max. Resolution | 2592x1944 (5MP) |
| Sensor | 1/2.7" CMOS Sensor |
| Lens | 2.8-12mm 4.2X Built-in Zoom Lens@F1.6 |
| Sensitivity | Color: 0.008Lux (AGC ON), B/W: 0.003Lux (AGC ON) |
| FOV | Horizontal: 32.6° ~ 93.8°, Vertical: 23.9° ~ 67.9° |
| Rotary axis angle | Pan: 355°, Tilt: 70°, Rotation: 355° |
| IR Distance | 12 x High Power LEDs, 850nm, IR Distance 30~40 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 2594x1944@30fps, 2594x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Max. Streams | 4 Srreams |
| Audio | Built-In Mic |
| Interface | Micro SD Card Slot (Optional), RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, Onvif profile S, Onvif profile T, Onvif profile G |
| Power Consumption | DC 12V Max.: 5.6W, PoE Max.: 7.6W |
| Special Features | Brightness, Contrast, Hue, Saturation, Sharpness, Automatic Gain Control, Night Mode, WDR, Flip, Mirror, Noise Reduction, Day & Night Adjustable, Back Light Control, Lens Distortion Correction, Region of Interest, Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P(Optional) |
| AI Features (Optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit Counting, Parking Detection |
| Dimensions | Ø121.5 x H96.5 (mm) |
| Weight | 550 (g) |
| Working Temp. | -20°C ~ 50°C / -4°F ~ 122°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20250731 | 5.6 Mb |  |
||
| Datesheet | 20240718 | 1.3 Mb | |
||
| IP Scanner | 20180726 | 1.7 Mb | |
Dimensions
 |
