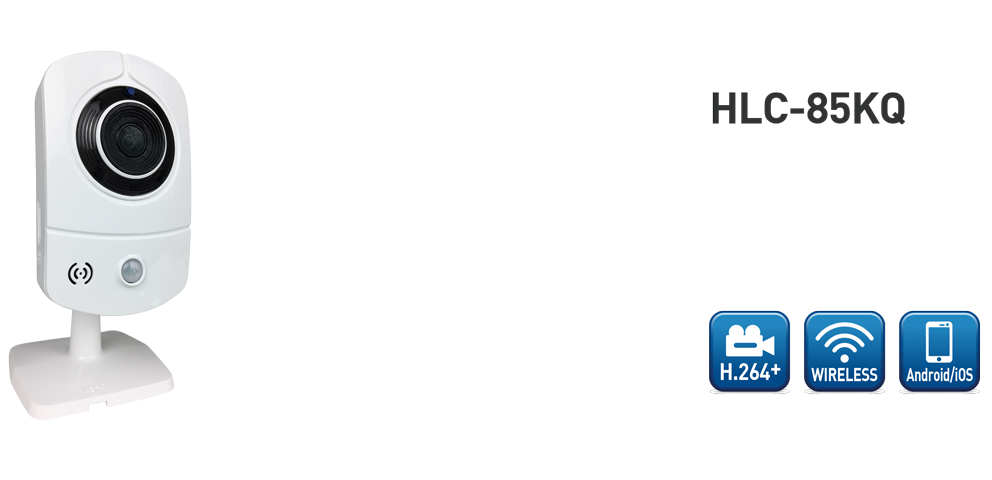

HLC-85KQ
H.264+ 5MP Indoor Mini Cube
Features
|
Specification
| Product Name | H.264+ 5MP Indoor Mini Cube |
| Model | HLC-85KQ |
| Max. Resolution | 2560x1920 (5MP) |
| Sensor | 1/2.7" CMOS Sensor |
| Lens | 3.6mm@F2.2 , 2.8mm@F2.2 |
| Sensitivity | Color: 0.01 Lux (AGC ON), B/W: 0.005 Lux (AGC ON) |
| FOV | 3.6mm Horizontal: 91°, Vertical: 66° 2.8mm Horizontal: 76°, Vertical: 55° |
| IR Distance | 4 x LEDs, 850nm, IR Distance 10 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 2560x1920@30fps, 2560x1440@30fps, 1920x1080@30fps, 1600x1200@30fps, 1280x960@30fps, 1280x720@30fps, 640x480@30fps, 640x360@30fps |
| Max. Streams | 3 Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Mic Built-in, Output: Speaker, Support 2 way Audio |
| Interface | Micro SD Card Slot, DC Jack, RJ45 |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, QoS/DSCP, COS, RTMP, IEEE 802.1X, RTSP/RTP/ RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T |
| Power Consumption | DC 12V Max: 3.5 W, PoE Max: 4.5 W |
| Special Features | Brightness, Contrast, Hue, Sharpness, Digital Wide Dynamic Range, Dynamic Noise Reduction, Shutter Time, Sense up, AE Compensation, Saturation, AGC, BLC, Flip, Mirror, Day & Night Adjustable, White Balance, Red Gain, Blue Gain, Region of Interest, Smart streams, Motion Detection, Privacy Mask, Push Video, Tampering Detection, Corridor mode, P2P (Optional) |
| Dimensions | W62 x H100 x D44 (mm) |
| Weight | 230 (g) |
| Working Temp. | 0°C ~ 40°C / 32°F ~ 104°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | Mb |  |
|||
| Datesheet | 20240521 | 1.2 Mb | |
||
| IPScanner | 20180726 | 1.7 Mb | |
Dimensions
 |
