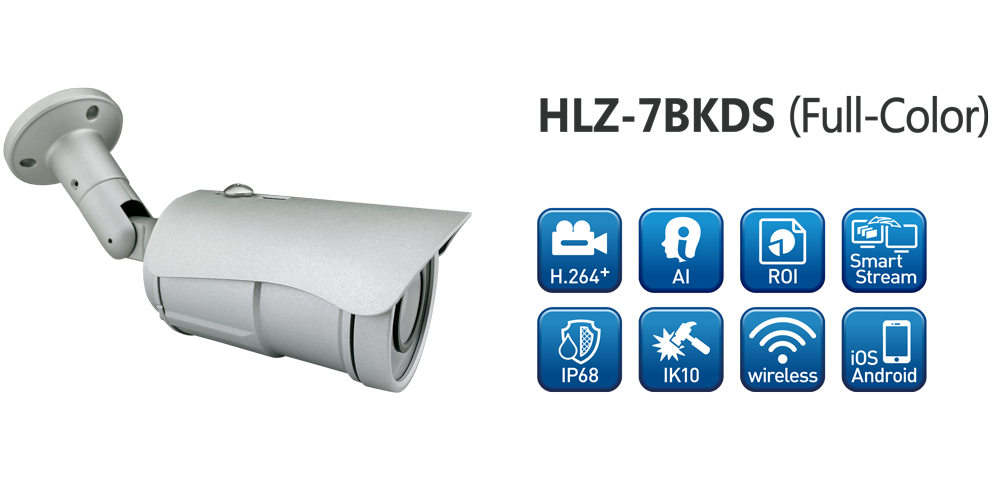

HLZ-7BKDS(Full-Color)
AI Full-Color Bullet IP Camera
Features
|
Specifications
| Product Name | AI Full-Color Bullet IP Camera |
| Model | HLZ-7BKDS(Full-Color) |
| Max. Resolution | 1920x1080 (2MP) |
| Sensor | 1/2.8" Sony Starvis CMOS Sensor |
| Lens | 2.8-12mm 4.2X Built-in Zoom Lens @ F1.6 |
| Sensitivity | Color: 0.003 Lux (AGC ON), B/W: 0.001 Lux (AGC ON) |
| FOV | Horizontal: 33.1°~ 94.4°, Vertical: 18.1°~ 50.2° |
| Warm Light & IR Distance | 6 x High Power LEDs, 850nm, IR Distance 40~50 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Max. Streams | 4 Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Ø3.5mm Stereo Jack, Output: Ø3.5mm Stereo Jack, Support 2 way Audio |
| Interface | DIx1, DOx1, Micro SD Card Slot (Optional), 3 Axis Management Bracket, WiFi (Optional), RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Power Consumption | DC 12V Max.: 4.8W, PoE Max.: 5.4W |
| Special Features | Region of Interest, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction, Corridor Mode, Tampering Detection, 3D Digital Noise Reduction, P2P (Optional), Push Video Notification |
| Dimensions | Ø77.4 x L125.5 (mm) |
| Weight | 720 (g) |
| Working Temp. | -20°C ~ 60°C / -4°F ~ 140°F |
| AI Features | |
| Identifiable Objects | Humanoid, Vehicles (Cars, Buses, Trucks, Motorcycles and Bicycles) |
| Operations | Virtual Fence, Area Detection, Queue Detection, Crowd Detection, Loitering Detection, Line Crossing Detection |
| Required Resolution for Identifying Target | The pixels under the 1920x1080 resolution: Humans: 90x200 pixels, Vehicles: 120x120 pixels |
| Maximum objects to Recognize per frame | 30 |
| AI Detect Area | 5 |
| Privacy Masks | Yes |
| Schedule Setup | Scheduled at any time and date assigned by user |
| Event Search | Assign events according to time & date for search |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
