HLZ-62KDHR 1

HLZ-62KDHR

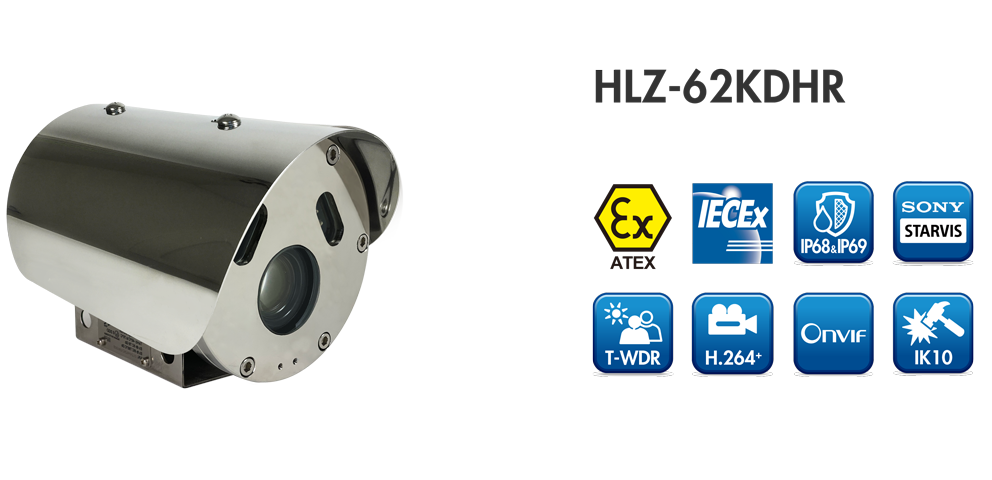

Explosion-proof H.264+ 2MP Motorized Bullet


  • ATEX & IECEx Certified Explosion-Proof Design
  • 1080P@60FPS
  • Starvis Sensor
  • 30X Built-in Zoom Lens
  • H.264+ / H.264 / M-JPEG Video Compression
  • IR LED Built-in 100(M)
  • Power over Ethernet (PoE)
  • IR Cut Filter Mechanism
  • Day & Night Manual Switch Time Control
  • Smart Stream
  • Region of Interest (ROI) Function
  • IP68,  IP69,  IK10
  • NEMA 4X
  • Support iPhone/ Android/ iPad
  • SDK for Software Integration
  • Free Bundle 36Ch Recording Software
Product Name Explosion-proof H.264+ 2MP Motorized Bullet
Model HLZ-62KDHR
Certification
ATEX
  II 2G Ex db IIC T6 Gb
 ATEX
  II 2D Ex tb IIIC T85°C Db
IECEx  Ex db IIC T6 Gb IECEx  Ex tb IIIC T85°C Db
Housing Material AISI 316L Stainless Steel
Enclosure Certificate IP68,  IP69,  IK10
Max. Resolution 1920x1080 (2MP)
Sensor 1/2.8" Sony Starvis CMOS Sensor
Lens 4.7-141mm 30X Bulid-in Zoom Lens
Sensitivity Color: 0.005 Lux (AGC ON),  B/W: 0.001 Lux (AGC ON)
FOV 30X Horizontal: 3.7°~59.2°,  Vertical: 1.8°~33.7°
IR Distance (Optional) 8 x Units High Power,  IR light Distance 100 (M)
Video Format H.264+ / H.264 / MJPEG
Video Resolution 1920x1080@60fps,  1280x720@30fps,  640x360@30fps
Max. Streams 4 Streams
Audio Format G.711 (64K) / G.726 (32K, 24K)
Audio Support 2 way
Interface DIx1,  DOx1,  Industrial 64GB Micro SD Card Built-in (Optional),  RS485,  RJ45,  DC Jack
Cable Length 4 (M)
Network Protocol IPv6,  IPv4,  HTTP,  HTTPS,  SNMP,  SSL,  TLS,  DNS,  ICMP,  IGMP,  ARP,  SNTP,  QoS/DSCP,  IEEE 802.1X,  RTSP/RTP/RTCP,  TCP/IP,  UDP,  SMTP,  FTP,  PPPoE,  DHCP,  DDNS,  NTP,  UPnP,  Samba,  Bonjour,  ONVIF Profile S,  ONVIF Profile T,  ONVIF Profile G
Power Consumption DC 12V Max.: 20W,  PoE Max.: 21W
-40°C with Heater on (Optional Heater): 31W
Special Features Region of Interest (ROI),  Smart Stream,  Motion Detection,  Privacy Mask,  Anti Fog,  Tampering Detection,  Corridor Mode,  Push Video,  P2P (Optional)
Sunshield Yes
Dimension Ø142.3 x H224 (mm)
Weight 6.8 (Kg)
Working Temp. Normal
IR Off:-20°C~65°C / -4°F~149°F,
IR On: -20°C~50°C / -4°F~122°F
Optional with Heater
IR Off: -40°C~65°C / -40°F~149°F,
IR On: -40°C~50°C / -40°F~122°F
◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands
Document Type Date Version Size Download
Manual   20220609   5.2 MB
Datesheet   20230707   2.2 Mb
IP Scanner   20180726   1.7 Mb
HLZ-62KDHR Accessories (AISI 316L)
Wall Mount Bracket Pole Mount Adapter Convex Corner Mount Adapter
Convex Corner Mount Adapter Pipe Junction Box
