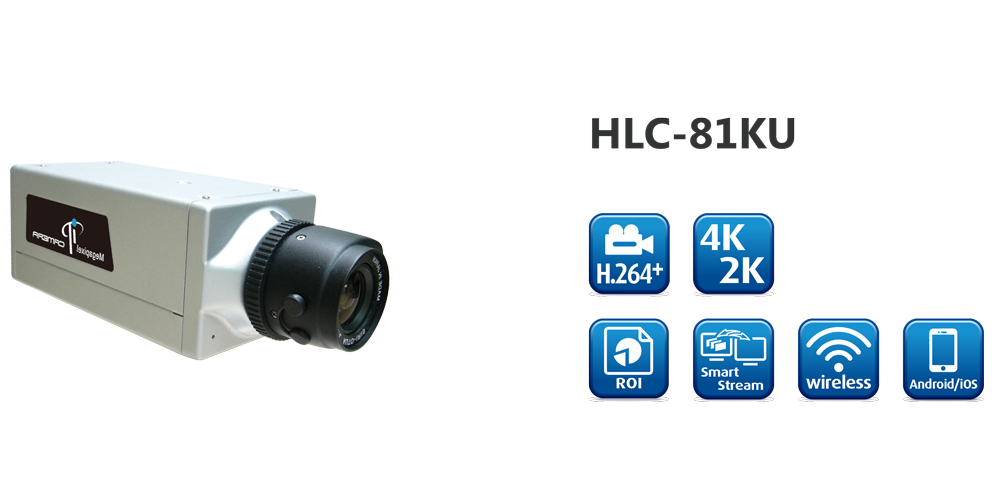

HLC-81KU
Features
|
Specification
| Product Name | H.264+ 8MP Box IP Camera |
| Model | HLC-81KU |
| Max. Resolution | 3840x2160 (8MP) |
| Sensor | 1/2.5" Sony CMOS Sensor |
| Lens | CS Mount |
| Sensitivity | Color: 0.01 Lux (AGC ON), B/W: 0.005 Lux (AGC ON) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 3840x2160@30fps, 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Max. Streams | Quadruple Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Microphone Built-in & Ø3.5mm Stereo Jack (Auto Switch), Output: Ø3.5mm Stereo Jack, Support 2 way Audio |
| Interface | DIx1, DOx1, SD Card Slot (Optional), Wi-Fi (Optional), RS485, RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Power Consumption | DC 12V Max.: 3.29W, PoE Max.: 3.93W |
| Special Features | Region of Interest (ROI), Advanced Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P(Optional) |
| Dimensions | W65 x H58 x D132 (mm) (Without Lens) |
| Weight | 450 (g) (Without Lens) |
| Working Temp. | -20°C ~ 60°C / -4°F ~ 140°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20220610 | 4.7 Mb |  |
||
| Datesheet | 20220915 | 1.4 Mb | |
||
| IPScanner | 20180726 | 1.7 Mb | |
Dimensions
 |
Accessories
| HLC-81KU Accessories | ||

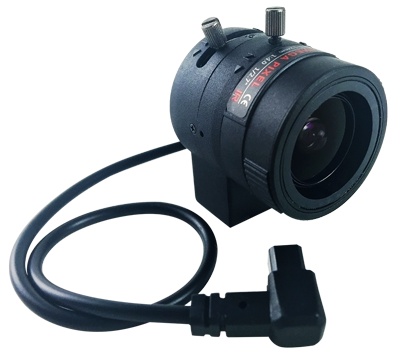

| 2.8-12mm F2.0, DC-Iris | 3-10.5mm F1.4, DC-Iris | Ø3.5mm Stereo Jack Microphone |
 |
 |
 |
