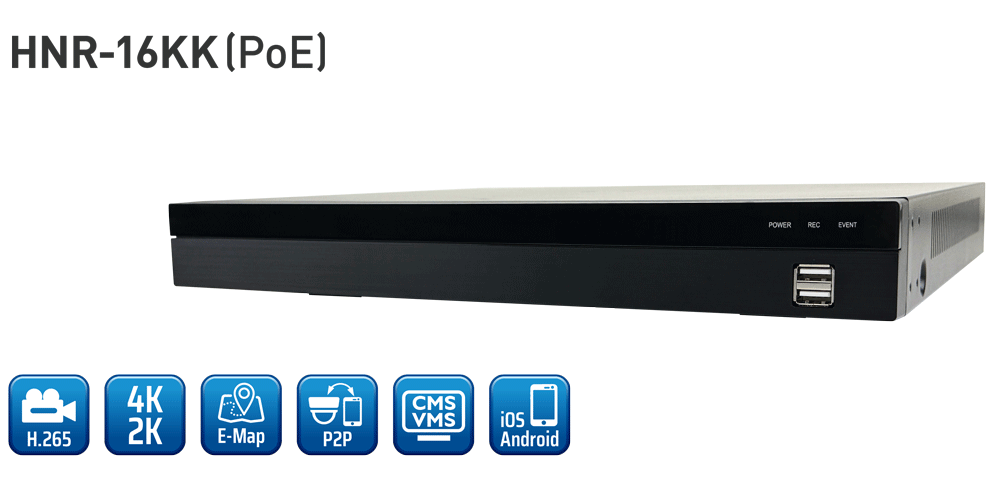

HNR-16KK PoE
16CH 4K2K H.265 PoE Embedded NVR
Features
|
Specifications
| Model | HNR-16KK(PoE) |
| Video | |
| IP Camera Input | 16 channels |
| Split Screen Display | 1, 4, 6, 9, 16 |
| Split Frame Rate | Single channel up to 8MP@30fps, Multi-channel up to 640x480/640x360@15-20fps |
| Camera Streaming | Main streaming & Sub streaming |
| Decompression | H.265/ H.264 |
| IP Camera Resolution Support | Up to 4K2K |
| Video Input Protocol | Auto, HUNT, Onvif, Video Server, Other 35 Private Vendors |
| Throughput | 76 Mbps |
| System | |
| OS | Embedded Linux |
| Ethernet | RJ-45, 10/100/1000 Mbps x1, 10/100 Mbps x16 |
| Video Output | HDMI output x1 (Max. 3840x2160) VGA output x1 (Max. 1920x1080) |
| USB | USB 2.0 x2 |
| Audio | Ø3.5mm Audio jack/ Audio input x1/ Audio output x1 |
| RS 485 | D+, D- |
| Power Input | AC100~240V |
| Power Output | RJ-45 x16, PoE 802.3at 1~8 port 72W, 9~16 port 72W |
| Recording and Playback | |
| Recording Mode | Manual/ Schedule/ Alarm Trigger/ Event/ Motion/ Overwrite |
| Pre-alarm Recording | 3~5 seconds |
| Playback Channels | 16 Channels |
| Playback Search | Timeline search/ Event list search |
| Playback Speed | x2, x4, x8, x16, x32, x64 |
| Storage & Backup | |
| Internal HDD Support | SATA HDD x2 (up to 16TB memory space for each HDD) |
| HDD Storage Mode | Normal mode/ Mirror recording mode (optional) |
| External Backup Device | USB Storage, Samba, FTP, Remote webpage download |
| Storage Info | SMART HDD report/ Free space |
| Backup File Format | mkv, avi |
| Network | |
| IP Setup | Static/ DHCP/ PPPoE/ DDNS |
| Windows Edge, Chrome or above | |
| Remote SW | Support iPhone/ iPad/ Android phone/ CMS |
| Remote online client | Max. 10 Online User |
| System Function | |
| User Management | Live & Playback Camera privilege |
| Languages | Support 9 languages |
| Dual Video Output | HDMI: Same as Split Screen Disply VGA: Live, E-map |
| Configuration | Save & Load |
| Event | Action: Push video/ E-mail/ Buzzer/ E-map highlight/ Split switch/ Relay/ PTZ preset Source: HDD full/ HDD error/ Network disconnect/ Camera connection loss/ Camera removed/ amera alarm in/ NVR alarm in |
| System | System Log/ System Help/ Setup Wizard/ Snapshot Album/ Streaming |
| Camera Setup | Manually Add/ Auto Search/ Plug & Play/ PTZ Control/ Image Setting/ Video Setting/ Motion Setup |
| Idle Time | Yes |
| Joystick | Yes |
| Physical / Working Temperature | |
| Dimensions (WxHxD) | 360 x 44 x 301 (mm) |
| Weight | 2Kg (No HDD) |
| Working Temperature | -10°C~55°C / 14°F~131°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Size | Download |
| Manual | Mb |  |
||
| Datesheet | 20251107 | 1.2 Mb | |
|
| IPScanner | .exe | 20180726 | 1.7 Mb | |
Dimensions
 |
