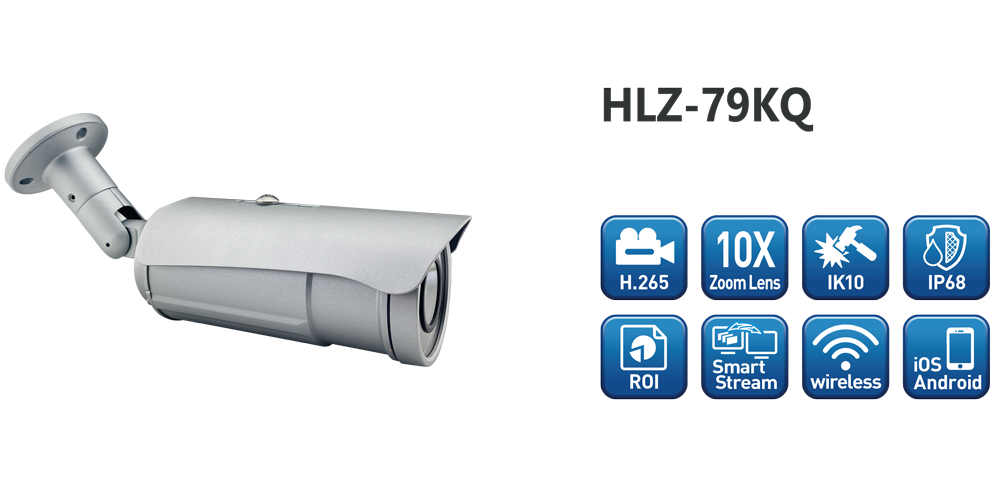

Name: HLZ-79KQ
Brand: HUNT ELECTRONIC CO., LTD.
SKU: 5MP H.264 Bullet IP Camera

HLZ-79KQ

5MP H.264+ Bullet IP Camera

5 Megapixel IR Bullet IP Camera
H.264⁺ / H.264 / M-JPEG Compression
ROI Function
Smart Stream
Smart Focus System for Remote Focus Adjustment
Digital Noise Reduction
Power over Ethernet
Digital Wide Dynamic Range
Day & Night Manual Switch Time Control
IR LED Built-in 70M
IR Cut Filter Mechanism
Micro SD Card Backup (Optional)
2-way Audio
IP66, IP68, IK10
Cable Management
Support iPhone / iPad / Android
SDK for Software Integration
Free Bundle 36Ch Recording Software

Product Name	H.264⁺ 5MP 10X Motorized Starvis IR Bullet
Model	HLZ-79KQ
Max. Resolution	2592x1944 (5MP)
Sensor	1/2.7" CMOS Sensor
Lens	5-50mm 10X Motorized Lens @ F2.0
Sensitivity	Color: 0.008 Lux (AGC ON), B/W: 0.003 Lux (AGC ON)
FOV	Horizontal: 8.5°~43.6°, Vertical: 6.2°~32.4°
IR Distance	6 x High Power LEDs, 850nm, IR Distance 70 (M)
Video Format	H.264⁺ / H.264 / MJPEG
Video Resolution	2592x1944@30fps, 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps
Max. Streams	4 Streams
Audio Format	G.711 (64K) / G.726 (32K, 24K)
Audio	Input: Ø3.5mm Stereo Jack, Output: Ø3.5mm Stereo Jack, Support 2 way Audio
Interface	DIx1, DOx1, Micro SD Card Slot (Optional), 3 Axis Management Bracket, WiFi (Optional), RJ45, DC Jack
Network Protocol	IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G
Power Consumption	DC 12V Max.: 6.8W, PoE Max.: 7.8W
Special Features	Region of Interest, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction, Corridor Mode, Tampering Detection, Sound Detection, Smart IR, 3D Digital Noise Reduction, P2P (Optional), Seamless Recording, Push Video Notification
AI Features (Optional)	Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit Counting, Parking Detection
Dimensions	Ø77.4 x L172 (mm)
Weight	1.1 (kg)
Working Temp.	-20°C ~ 60°C / -4°F ~ 140°F
◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands

Document	Type	Date	Version	Size	Download
Manual		20220214		5.0 Mb
Datesheet		20250918		2.1 Mb
IPScanner		20180726		1.7 Mb

Features

5 Megapixel IR Bullet IP Camera
H.264⁺ / H.264 / M-JPEG Compression
ROI Function
Smart Stream
Smart Focus System for Remote Focus Adjustment
Digital Noise Reduction
Power over Ethernet
Digital Wide Dynamic Range
Day & Night Manual Switch Time Control
IR LED Built-in 70M
IR Cut Filter Mechanism
Micro SD Card Backup (Optional)
2-way Audio
IP66, IP68, IK10
Cable Management
Support iPhone / iPad / Android
SDK for Software Integration
Free Bundle 36Ch Recording Software

Specification

Product Name	H.264⁺ 5MP 10X Motorized Starvis IR Bullet
Model	HLZ-79KQ
Max. Resolution	2592x1944 (5MP)
Sensor	1/2.7" CMOS Sensor
Lens	5-50mm 10X Motorized Lens @ F2.0
Sensitivity	Color: 0.008 Lux (AGC ON), B/W: 0.003 Lux (AGC ON)
FOV	Horizontal: 8.5°~43.6°, Vertical: 6.2°~32.4°
IR Distance	6 x High Power LEDs, 850nm, IR Distance 70 (M)
Video Format	H.264⁺ / H.264 / MJPEG
Video Resolution	2592x1944@30fps, 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps
Max. Streams	4 Streams
Audio Format	G.711 (64K) / G.726 (32K, 24K)
Audio	Input: Ø3.5mm Stereo Jack, Output: Ø3.5mm Stereo Jack, Support 2 way Audio
Interface	DIx1, DOx1, Micro SD Card Slot (Optional), 3 Axis Management Bracket, WiFi (Optional), RJ45, DC Jack
Network Protocol	IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G
Power Consumption	DC 12V Max.: 6.8W, PoE Max.: 7.8W
Special Features	Region of Interest, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction, Corridor Mode, Tampering Detection, Sound Detection, Smart IR, 3D Digital Noise Reduction, P2P (Optional), Seamless Recording, Push Video Notification
AI Features (Optional)	Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit Counting, Parking Detection
Dimensions	Ø77.4 x L172 (mm)
Weight	1.1 (kg)
Working Temp.	-20°C ~ 60°C / -4°F ~ 140°F
◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands

Download

Document	Type	Date	Version	Size	Download
Manual		20220214		5.0 Mb
Datesheet		20250918		2.1 Mb
IPScanner		20180726		1.7 Mb

Dimensions
