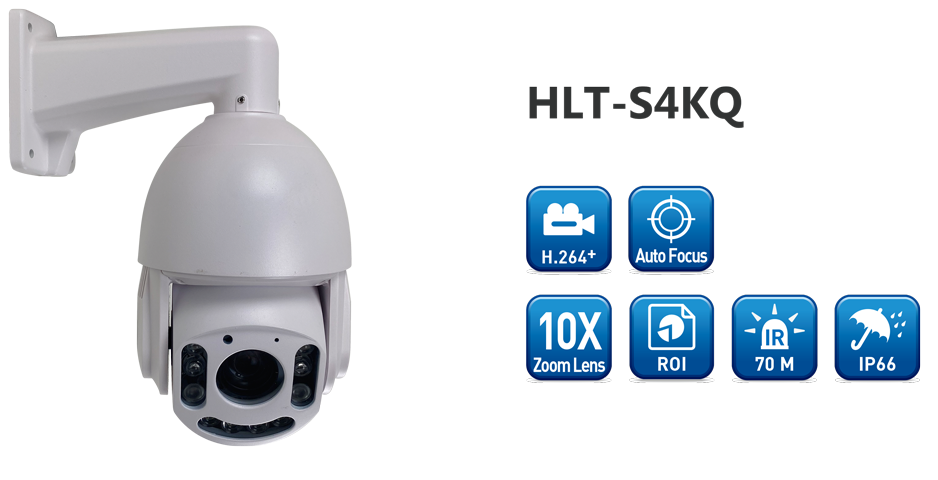

HLT-S4KQ
5MP H.264+ Mini PTZ IP Speed Dome
Features
|
Specification
| Product Name | H.264+ 5MP Mini IP Seppd Dome |
| Model | HLT-S4KQ |
| Max. Resolution | 2592x1944 (5MP) |
| Sensor | 1/2.7" CMOS Sensor |
| Lens | 5-50mm (10X Optical Zoom, Auto Focus) |
| Sensitivity | Color: 0.008 Lux (AGC ON), B/W: 0.003 Lux (AGC ON) |
| FOV | Horizontal: 7°~ 50°, Vertical: 4°~ 41° |
| IR Distance | 6 x High Power LEDs, IR Distance 60(M) |
| White Light Distance | 4 x LEDs, White Light Distance 30(M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Audio | G.711 (64K) and G.726 (32K, 24K) Audio Compression, Input: Mic built-in, Output: Speaker, Support 2 way Audio |
| Video Resolution | 2592x1944@30fps, 2592x1520@30fps, 1920x1080@60fps, 1600x1200@30fps, 1280x960@30fps, 1280x720@30fps, 640x480@30fps, 640x360@fps |
| Max. Streams | 4 Streams |
| Pan/ Tilt Range | 360° Endless / 180° (90°Auto Flip) |
| Preset (Patrol) Speed | 200°/sec |
| Preset Accuracy | < ± 0.15° |
| Preset Location | 256 |
| Smart PTZ | DI x 1, DO x 1, Patrol, Cruise, Auto Recovery, Auto Pan, Auto Tracking (Optional) |
| Interface | Micro SD Card Slot (Optional), RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, QoS/DSCP, COS, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Sanba, Bonjour, ONVIF Profile S, ONVIF Profile G, ONVIF Profile T |
| Power Consumption | DC 12V Max.: 10.3W, PoE Max.: 11W |
| Special Features | Region of Interest, Motion Detection, Push Video, AGC, Auto Electronic Shutter, Day & Night Mode, Day & Night Level, Day & Night Delay, Denoise 2D, Denoise 3D, WDR Mode, BLC, Video Orientation, White Balance, Anti Fog, HW Anti fog, Sharpness, Exposure Compensation, Brightness, Contrast, Saturation, Hue, P2P (Optional) |
| AI Features (Optional) | Area Detection, Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit Counting, Parking Detection |
| Dimensions | Ø138 x H228 (mm) |
| Weight | 1.5 (Kg) |
| Working Temp. | -20°C ~ 50°C / -4°F ~ 122°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20250819 | 5.2 Mb |  |
||
| Datesheet | 20250108 | 1.1 Mb | |
||
| IP Scanner | 20180726 | 1.7 Mb | |
Dimensions
 |
Accessories
| HLT-S4KQ Accessories | ||

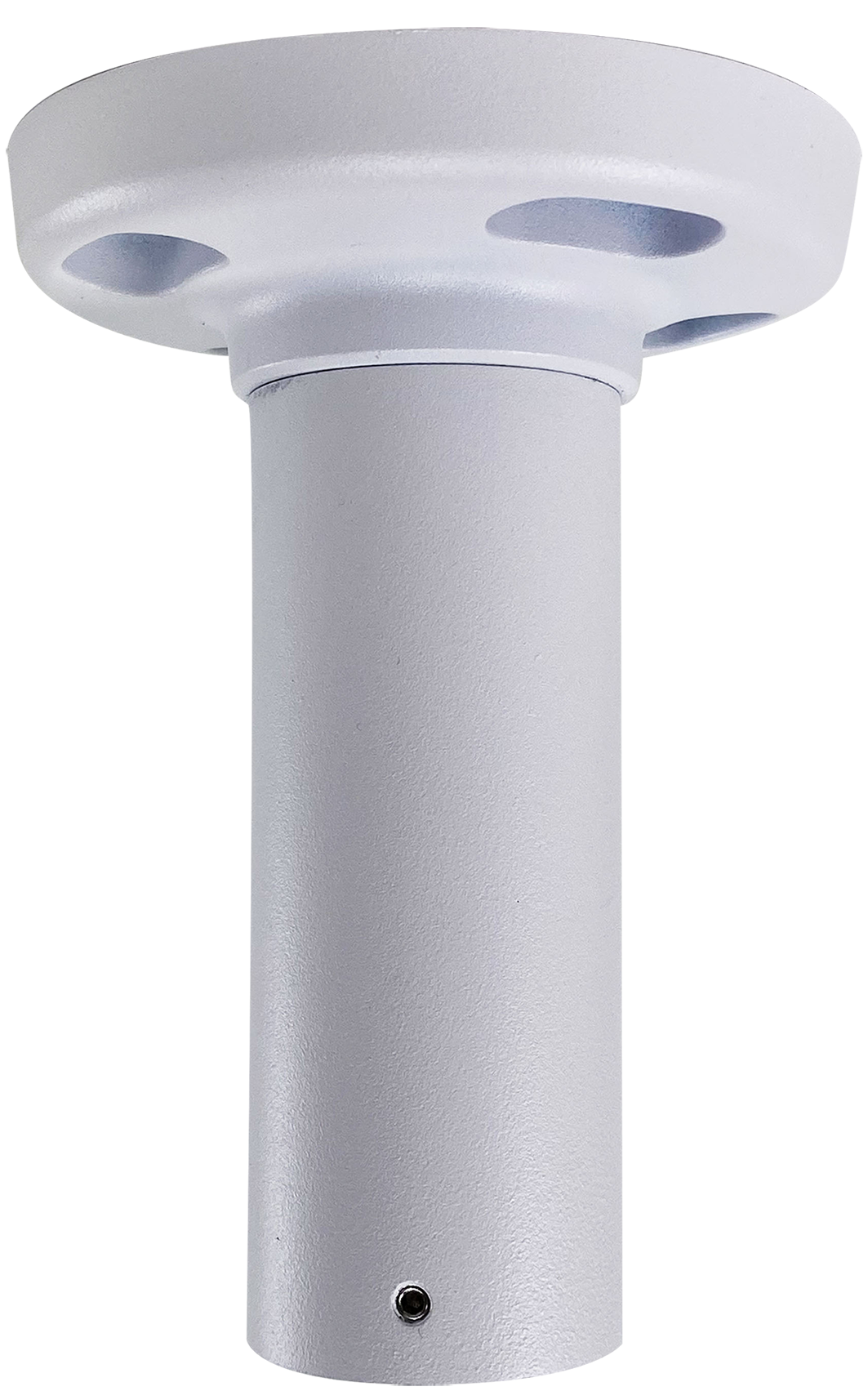

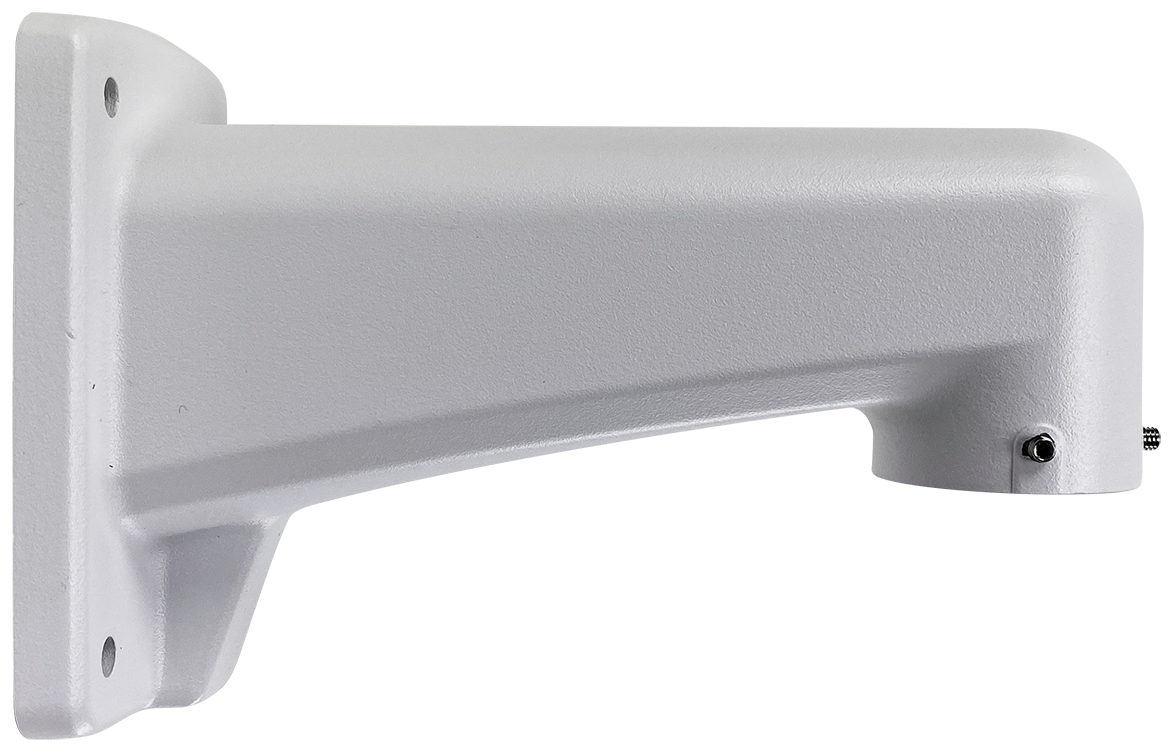

| Wall Mount Bracket | Pendant Mount Bracket | |
 |
 |
|
