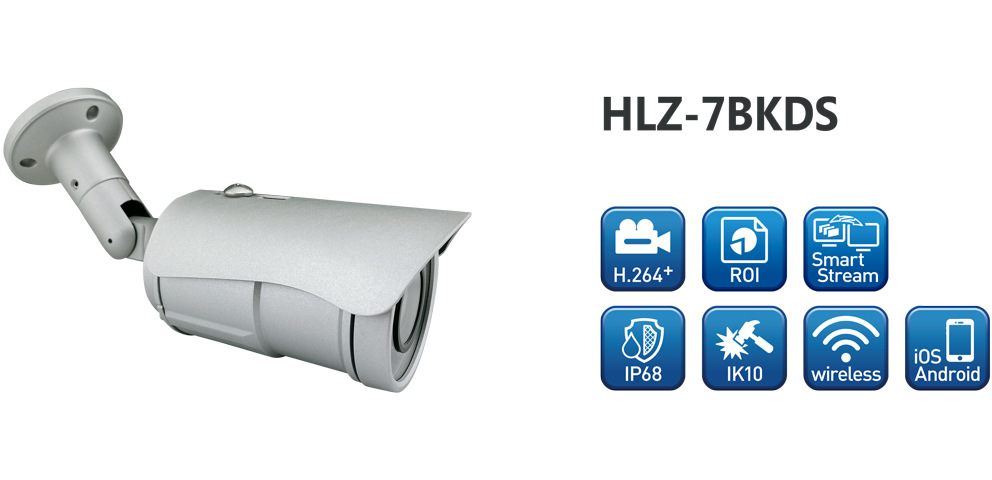

HLZ-7BKDS
2MP H.264+ Bullet IP Camera
Features
|
Specifications
| Product Name | H.264+ 2MP Motorized Starvis IR Bullet |
| Model | HLZ-7BKDS |
| Max. Resolution | 1920x1080 (2MP) |
| Sensor | 1/2.8" Sony Starvis CMOS Sensor |
| Lens | 2.8-12mm 4.2X Built-in Zoom Lens @ F1.6 |
| Sensitivity | Color: 0.003 Lux (AGC ON), B/W: 0.001 Lux (AGC ON) |
| FOV | Horizontal: 33.1°~ 94.4°, Vertical: 18.1°~ 50.2° |
| IR Distance | 6 x High Power LEDs, 850nm, IR Distance 40~50 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Max. Streams | 4 Streams |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: Ø3.5mm Stereo Jack, Output: Ø3.5mm Stereo Jack, Support 2 way Audio |
| Interface | DIx1, DOx1, Micro SD Card Slot (Optional), 3 Axis Management Bracket, WiFi (Optional), RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Power Consumption | DC 12V Max.: 5.7W, PoE Max.: 6.9W |
| Special Features | Region of Interest, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction, Corridor Mode, Tampering Detection, 3D Digital Noise Reduction, P2P (Optional), Push Video Notification |
| AI Features (Optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit Counting, Parking Detection |
| Dimensions | Ø77.4 x L125.5 (mm) |
| Weight | 720 (g) |
| Working Temp. | -20°C ~ 60°C / -4°F ~ 140°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20230419 | 5.0 Mb |  |
||
| Datesheet | 20250912 | 1.9 Mb | |
||
| IPScanner | 20180726 | 1.7 Mb | |
Dimensions
 |
