HLZ-1WKU

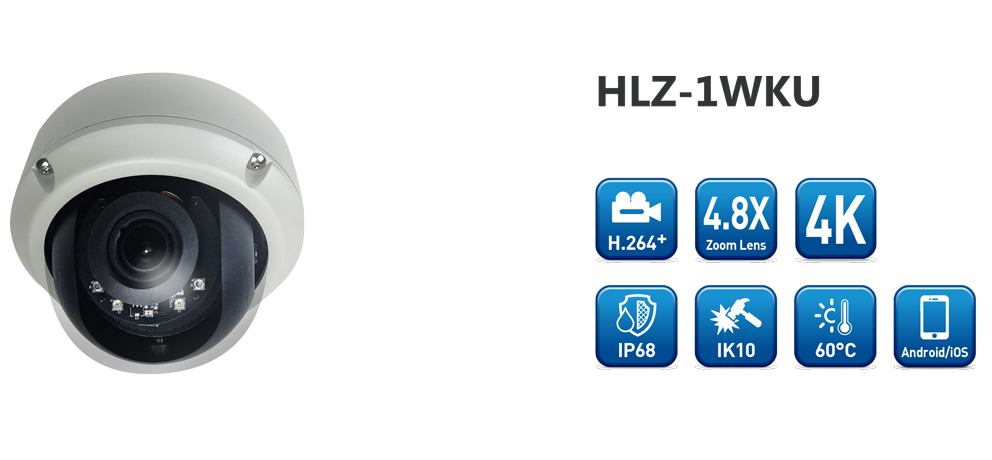

4K H.264+ Vandal Dome IP Camera
Features
|
Specification
| Product Name | H.264+ 4K Motorized IR Vandal Dome |
| Model | HLZ-1WKU |
| Max. Resolution | 3840x2160 (4K) |
| Sensor | 1/2.5" Sony CMOS Sensor |
| Lens | 2.8-13.5mm 4.8X Built-in Zoom Lens @ F1.6 |
| Sensitivity | Color: 0.01 Lux (AGC ON), B/W: 0.005 Lux (AGC ON) |
| FOV | Horizontal: 34.7°~ 106.6°, Vertical: 19.3°~ 55.9° |
| IR Distance | 4 x High Power LEDs, 850nm, IR Distance 40 (M) |
| Video Format | H.264+ / H.264 / MJPEG |
| Video Resolution | 3840x2160@30fps, 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Max. Streams | Quadruple Streaming |
| Audio Format | G.711 (64K) / G.726 (32K, 24K) |
| Audio | Input: External Audio in, Output: External Line out, Support 2-way |
| Interface | DIx1, DOx1, Micro SD Card Slot (Optional), RJ45, DC Jack |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, Samba, Bonjour, ONVIF Profile S, ONVIF Profile T, ONVIF Profile G |
| Power Consumption | DC 12V Max.: 5.3W, PoE Max.: 6.3W |
| Special Features | Region of Interest, Advanced Smart Stream, Motion Detection, Privacy Mask, Defog, Lens Distortion Correction, Corridor Mode, Tampering Detection, Digital Noise, Push Video, P2P (Optional) |
| AI Features (Optional) |
Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit counting, Parking Detection |
| Dimensions | Ø137 x H102 (mm) |
| Weight | 890 (g) |
| Working Temp. | -20°C ~ 50°C / -4°F ~ 122°F |
| ◊ Specification are subject to change without notice please contact us for any further inquiry of customization demands | |
Download
| Document | Type | Date | Version | Size | Download |
| Manual | 20220819 | 5.2 Mb |  |
||
| Datesheet | 20220824 | 2.2 Mb | |
||
| IP Scanner | 20180726 | 1.7 Mb | |
Dimensions
 |
Accessories
| HLZ-1WKU Accessories | ||
| Pole Mount Adapter | L-shap Bracket | Ø3.5mm Stereo Jack Microphone |
 |
 |
 |
